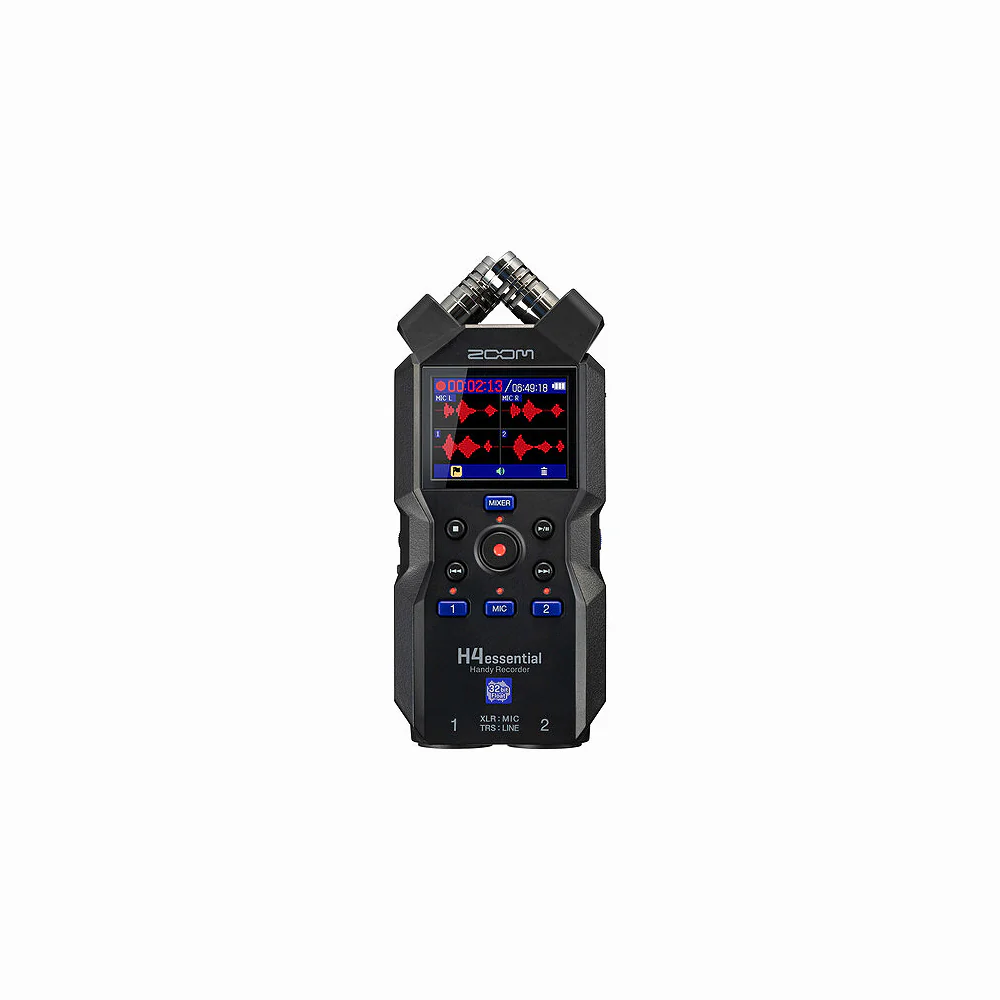

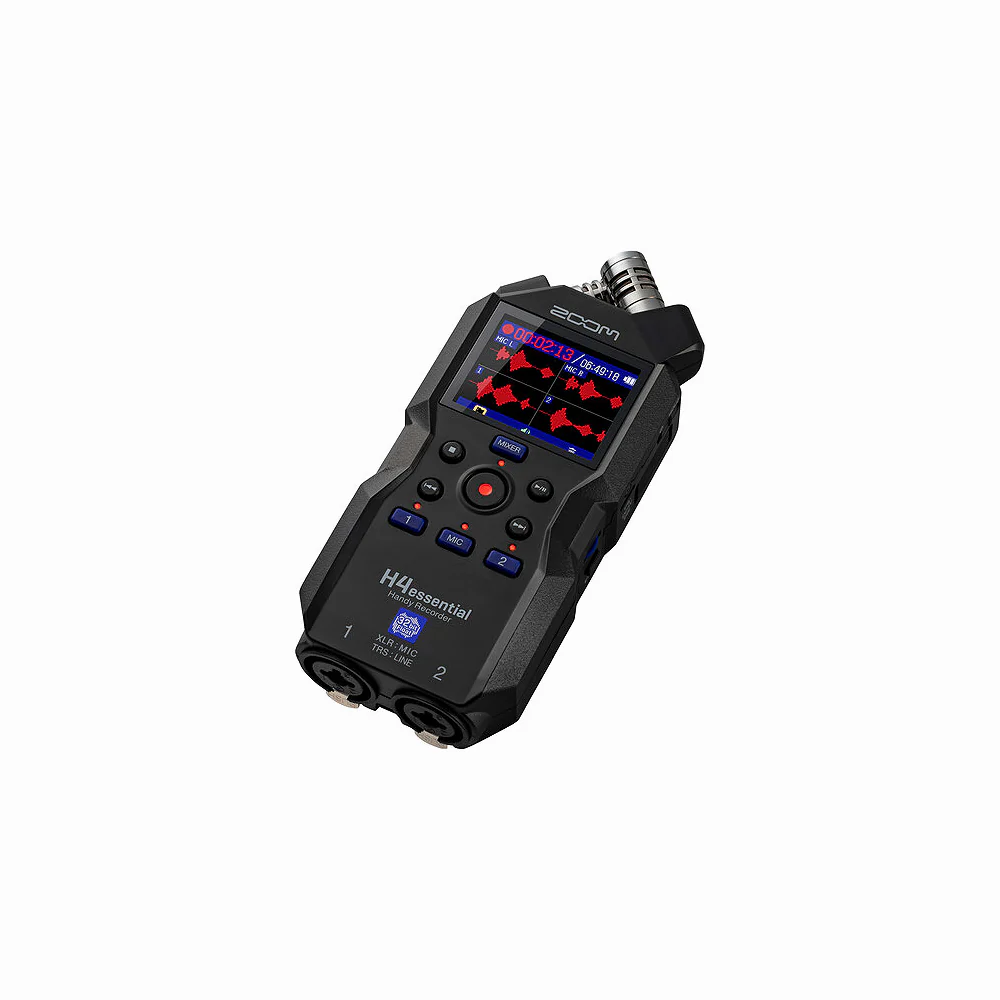

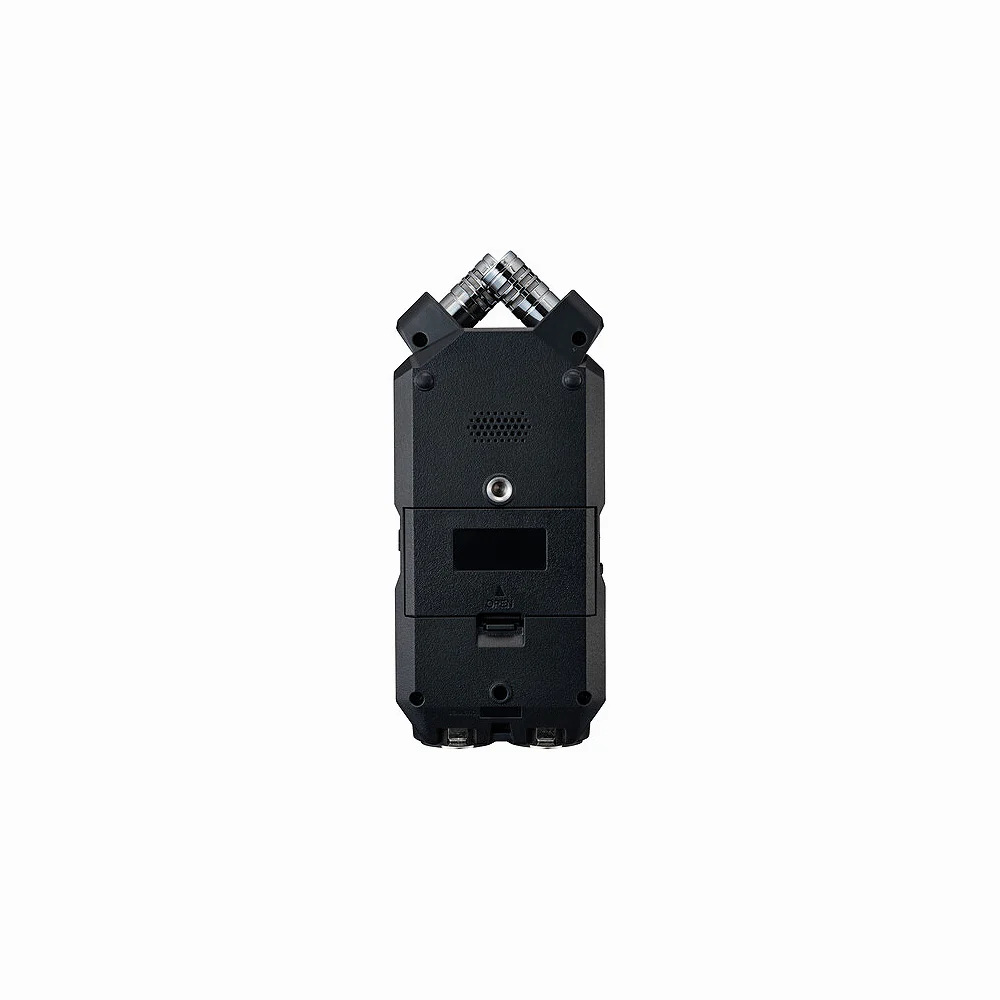

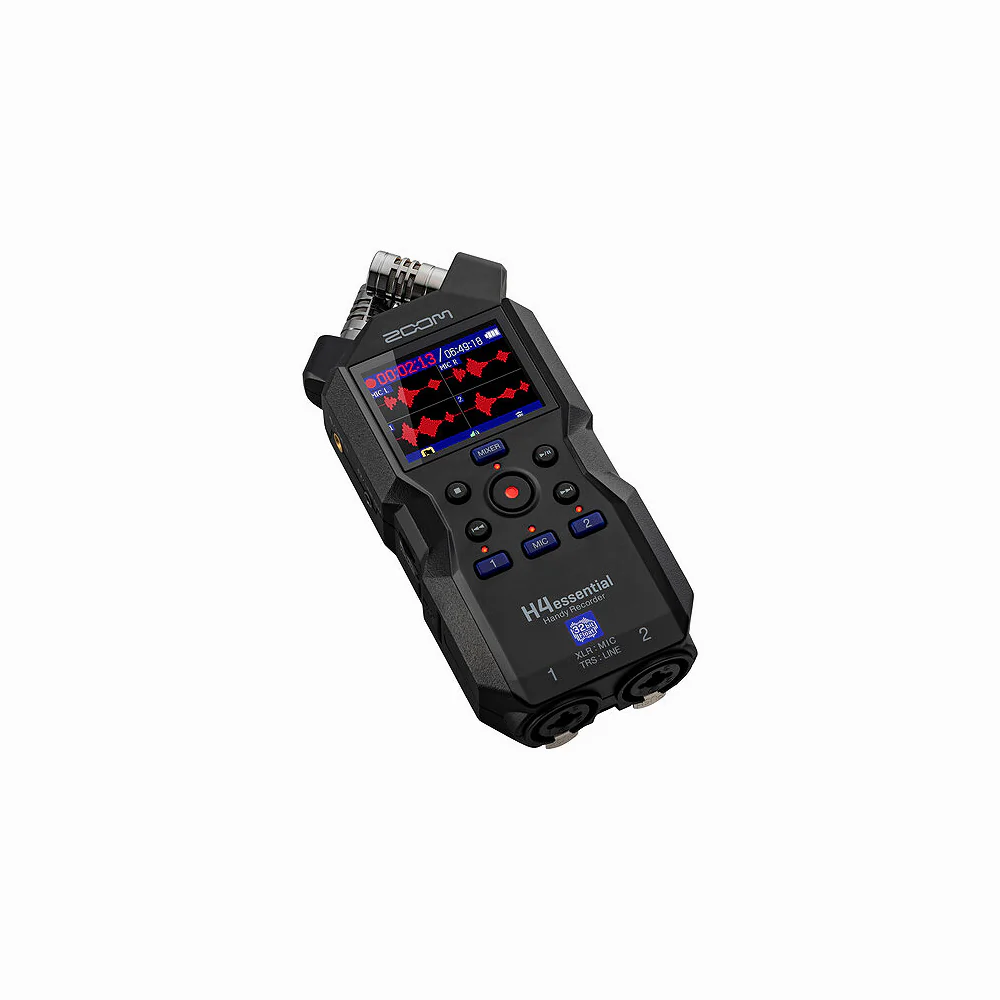

Zoom H4essential 4-Track 32-Bit Float Portable Audio Recorder
Features:
- 4-track 32-bit float recorder with Dual A/D Converters
- Clip-free recording with no need to set gain
- Records up to 96kHZ sample rate
- Color LCD Screen
- 130 dB SPL XY Mic
- 2x XLR/TRS combo inputs with locking connector
- 3.5mm mic/line input for lavalier mics and line level sources
- Built-in mixer to adjust each track's audio level
- Built-in speaker for quick reference playback
- 3.5mm line output for headphones or to connect to a camera
- Voice Guidance accessibility for the visually impaired
- 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
- Use as an interface and record to SD card simultaneously
- Using the BTA-1* Bluetooth Adapter, sync with wireless timecode devices via bluetooth
- Use the BTA-1* Bluetooth Adapter to pair with the H4essential Control App for iOS
- Record to SD cads up to 1TB
- 10 hours of battery life on AA battery (2x) or USB-C Bus Power
*Please Note: BTA-1 Adapter not included
Specifications:
-
Input Channels:
- Built-in mic (stereo), 90° XY stereo format
- XLR/TRS
- MIC/LINE IN -
Output Channels:
- Headphones
- Built-in speaker (mono)
Built-in Mic - Directionality: Unidirectional
- Sensitivity: -43dB/1 Pa @ 1kHz
- Max Sound Pressure Input: 130dB SPL
Inputs 1-2 - Connector: 2x XLR/TRS combo jacks
- Input Gain: Adjustment unnecessary
- Input Impedance:
- MIC: 3.8kΩ or more
- LINE: 39kΩ or more - Max Input Level:
- MIC: 4dBu
- LINE: 24dBu - Phantom Power: 48V, Channel total 10mA or less
- Equivalent Input Noise:
- MIC: -120dBu or less (IHF-A) @ 150Ω input
- LINE: -95dBu or less (IHF-A) @ 600Ω input
MIC/LINE IN
(supports plug-in power) - Connector: 1x stereo mini jack
- Input Gain: Adjustment unnecessary
- Input Impedance: 2kΩ or more
- Headphones Output
- Connector: 1x stereo mini jack
- Max Output Level: 20mW + 20mW (into 32Ω load)
- Output Impedance: 15Ω or less
Built-In Speaker Output - Type: 20mm x 30mm elliptical dynamic speaker
- Effective Max Output: 250mW
Recorder - Max Simultaneous Recording Tracks: 4
- Max Simultaneous Playback Tracks: 4
-
Recording Formats:
- WAV
- 44.1/48/96 kHz
- 32-bit float mono/stereo
- BWF and iXML formats supported - Recording Media:
- 4GB - 32GB microSDHC card specification
- 64GB - 1TB microSDXC card specification
- Display: 360 x 240 2" full-color LCD
-
Remote: ZOOM BTA-1 dedicated wireless adapter
(sold separately)
USB - Connector: 1x USB Type-C (Use a USB cable that supports data transfer)
- USB Mic:
- USB 2.0 High Speed
- 44.1/48 kHz
- 24-bit /32-bit float
- 4-in/2-out - File Transfer: USB 2.0 high speed
- Power

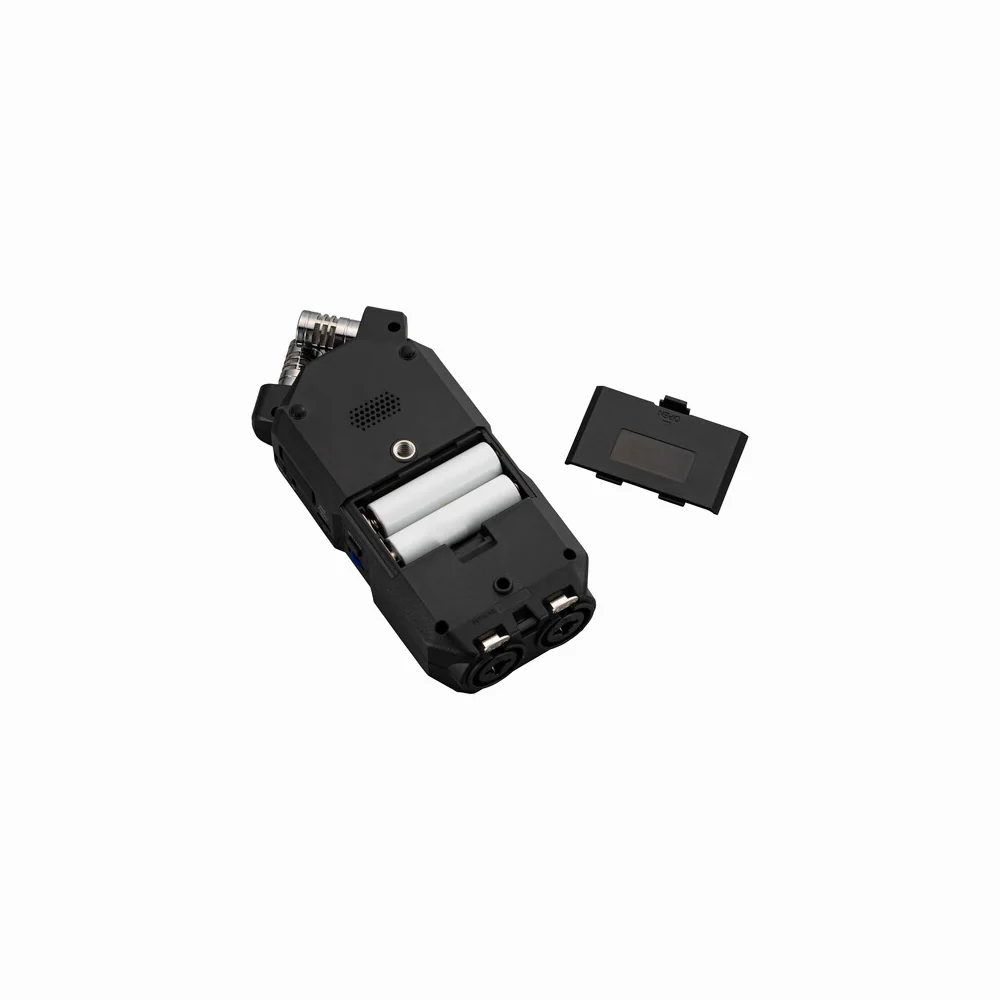

- AA Batteries: 2x Alkaline, lithium or rechargeable NiMH batteries
- AC Adapter: ZOOM AD-17 (DC 5V/1A)
(USB bus power is supported) - Power Consumption: 3W max
$332.50
Original: $950.00
-65%Zoom H4essential 4-Track 32-Bit Float Portable Audio Recorder—
$950.00
$332.50
