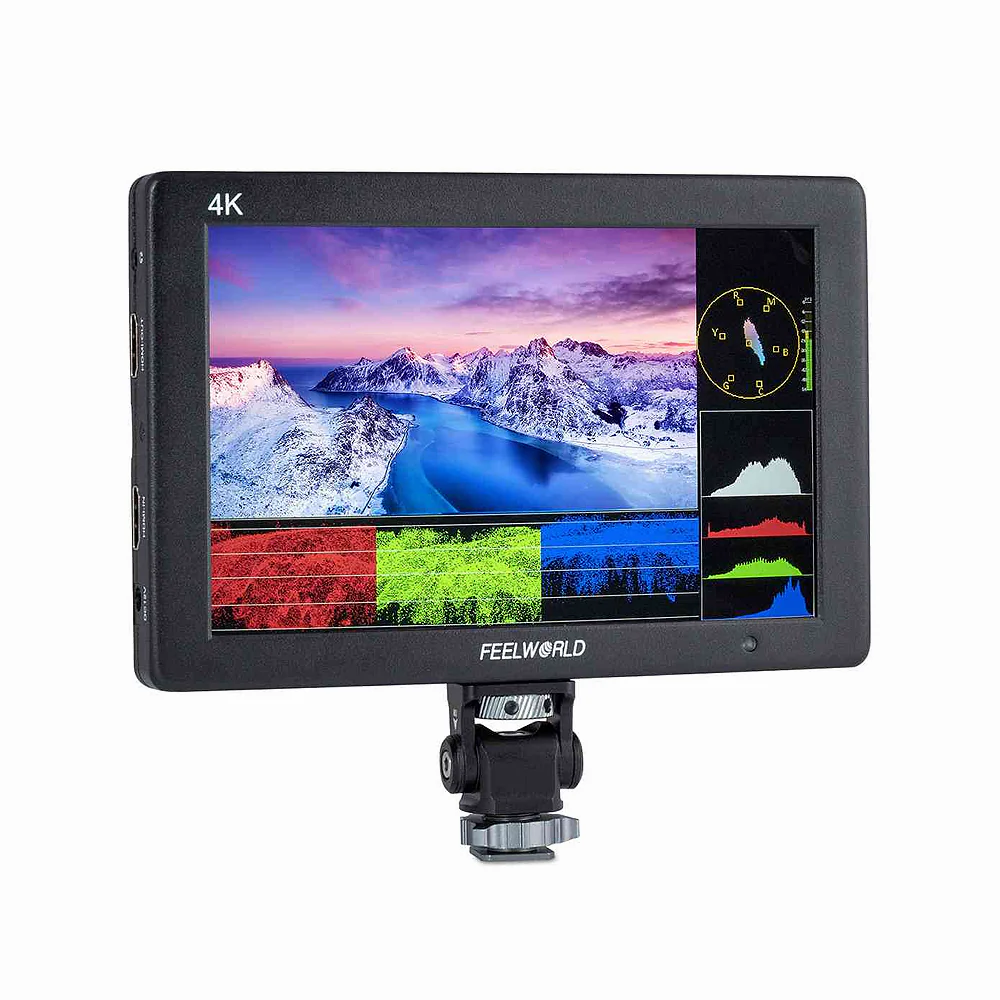

FeelWorld T7 Plus 7" IPS On-Camera Monitor with 3D LUT
FeelWorld T7 Plus 7" IPS On-Camera Monitor with 3D LUT, Waveform & Vectorscope
- 7" 1920 x 1200 Display

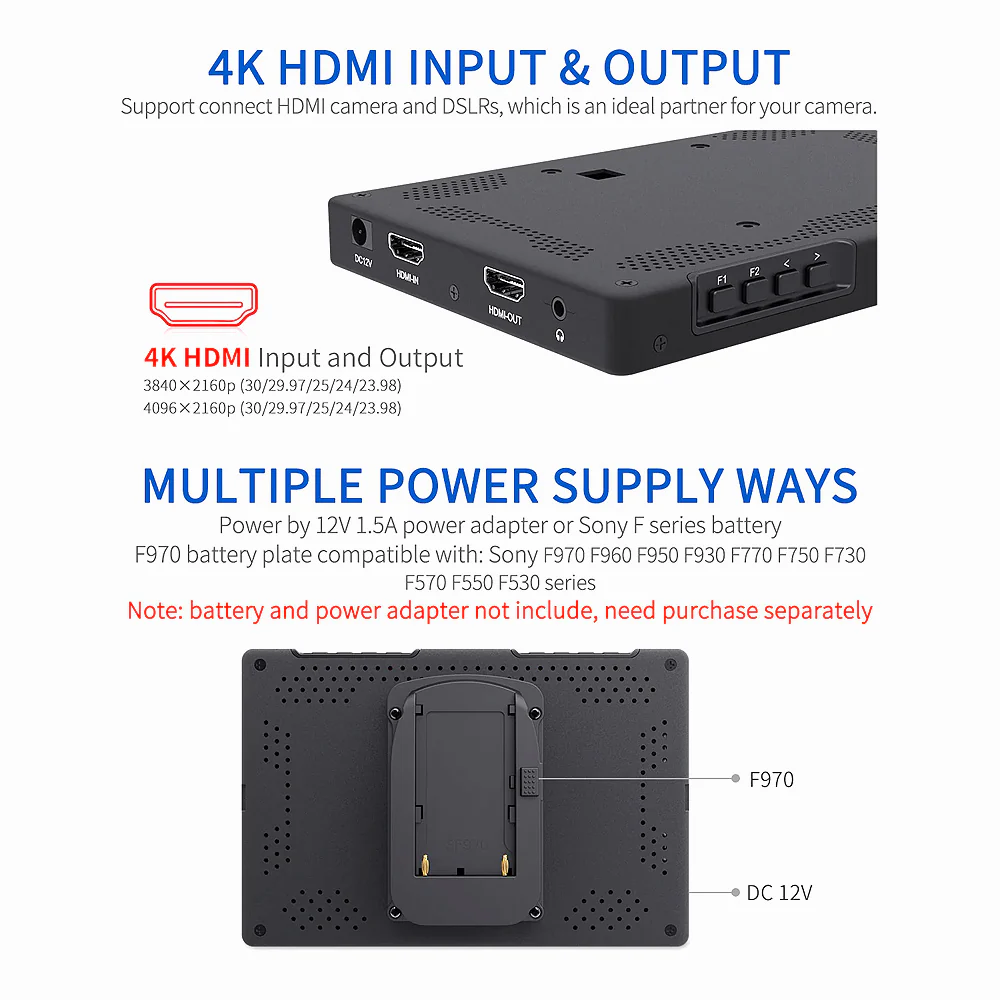

- 4K HDMI In and Out
- Wide 160° Viewing Angle

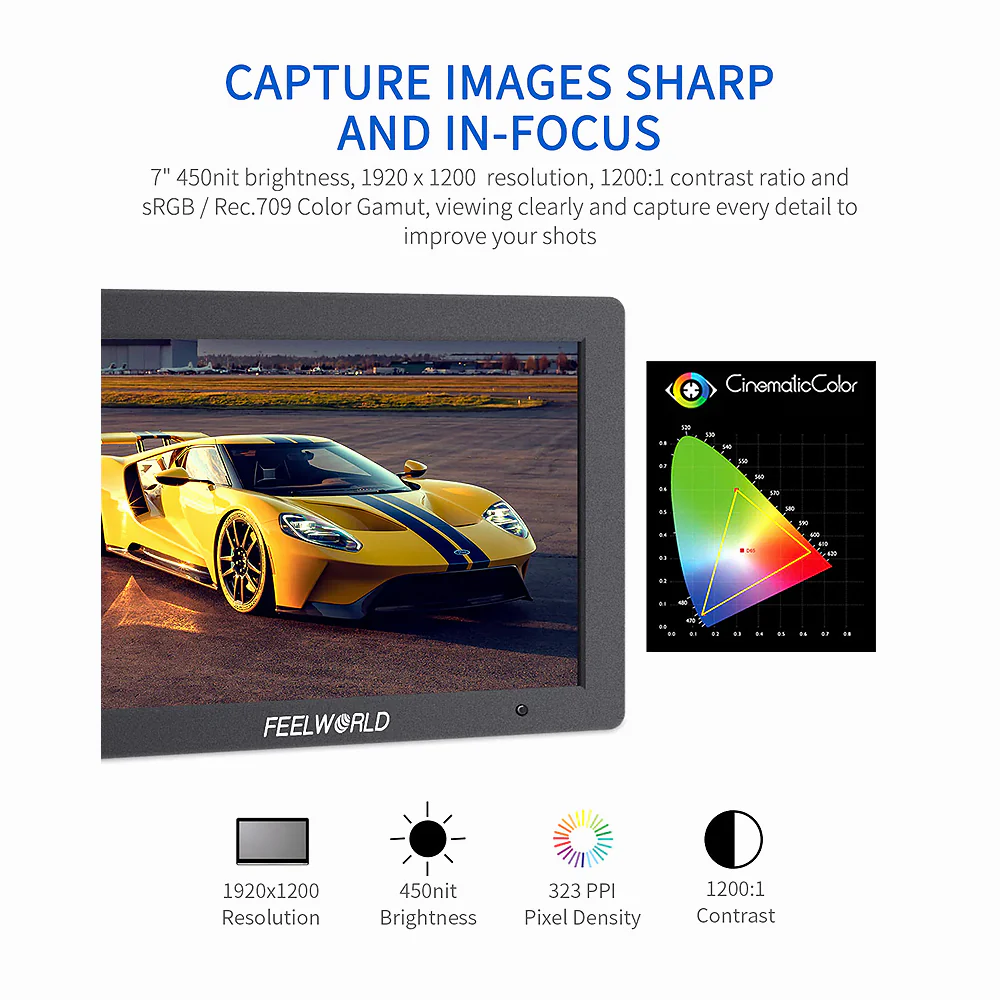

- 1200:1 Contrast, 450 cd/m² Brightness
- Built-In Waveform Monitoring
- Mini Hot Shoe Mount
- Two 1/4"-20 Threads
- F970 Battery Plate
- Included Sunshade

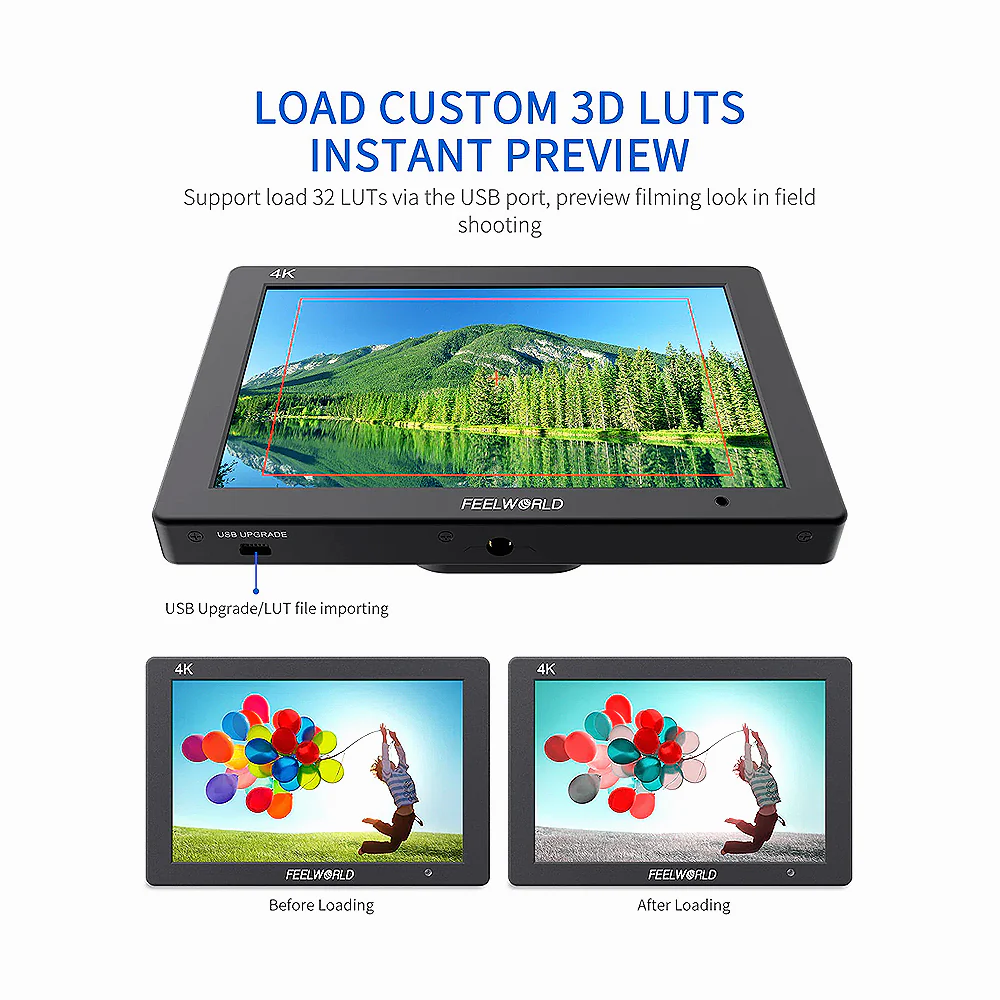

The monitor boasts 1200:1 contrast and 450 cd/m² brightness, as well as an F970 battery plate on the back panel. The operating system of the T7 Plus includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 32 custom 3D LUTs can be loaded into the interface using the USB adapter for intuitive color calibration. Further customization can be achieved by programming the onboard button controls as shortcuts to these various modes for adaptability on location.

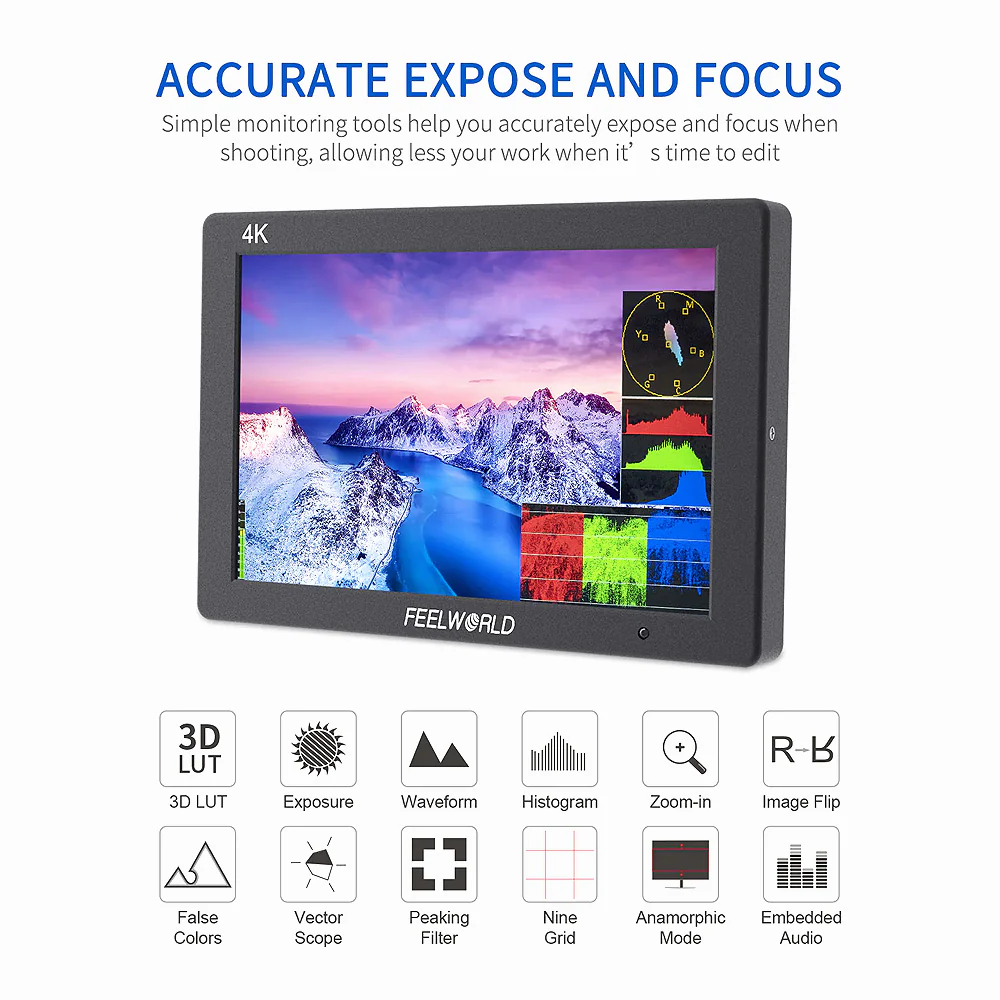

- Choose from RGB, YUV, and Y parade
- Vectorscope, histogram, audio, and level displays
- Shows all technical aspects of video and audio at once while monitoring visual
- Functions can be opened separately or all together
- Anamorphic mode (1.3x, 2.0x, 2.0x mag, user-defined adjustment: 1.20X~2.00X)
- Center marker
- Check field (red/green/blue/mono)
- Color temperature
- False color
- Histogram (RGB1, Y, RGB2)
- Image flip
- Image freeze
- Nine grid
- Peaking focus assist (color switch capabilities)
- Pixel to pixel
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Scan mode (under, over)
- Waveform (RGB, Y, YUV)
- Zebra
- Zoom (4x, 9x, 16x)

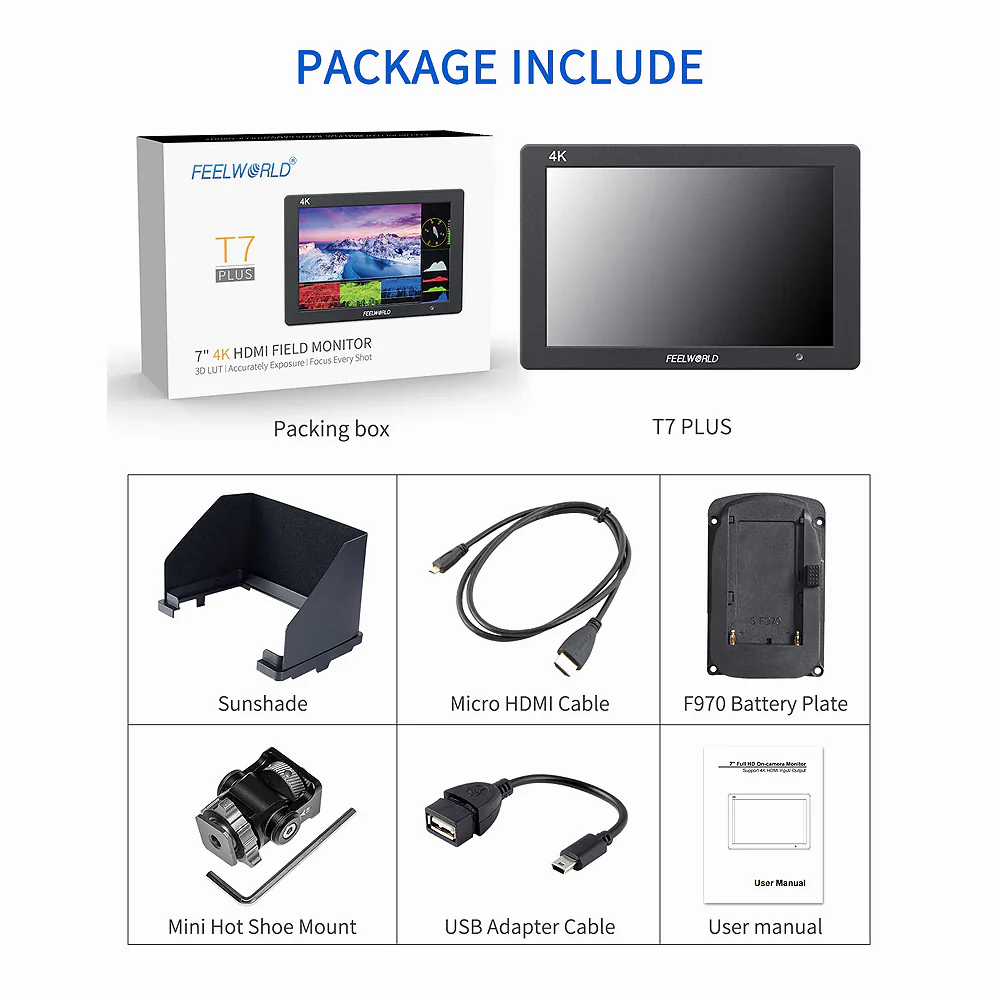

- FeelWorld T7 Plus 7" IPS On-Camera Monitor with 3D LUT, Waveform & Vectorscope
- Micro-HDMI Cable
- Sunshade
- Mini Hot Shoe Mount
- USB Adapter Cable
