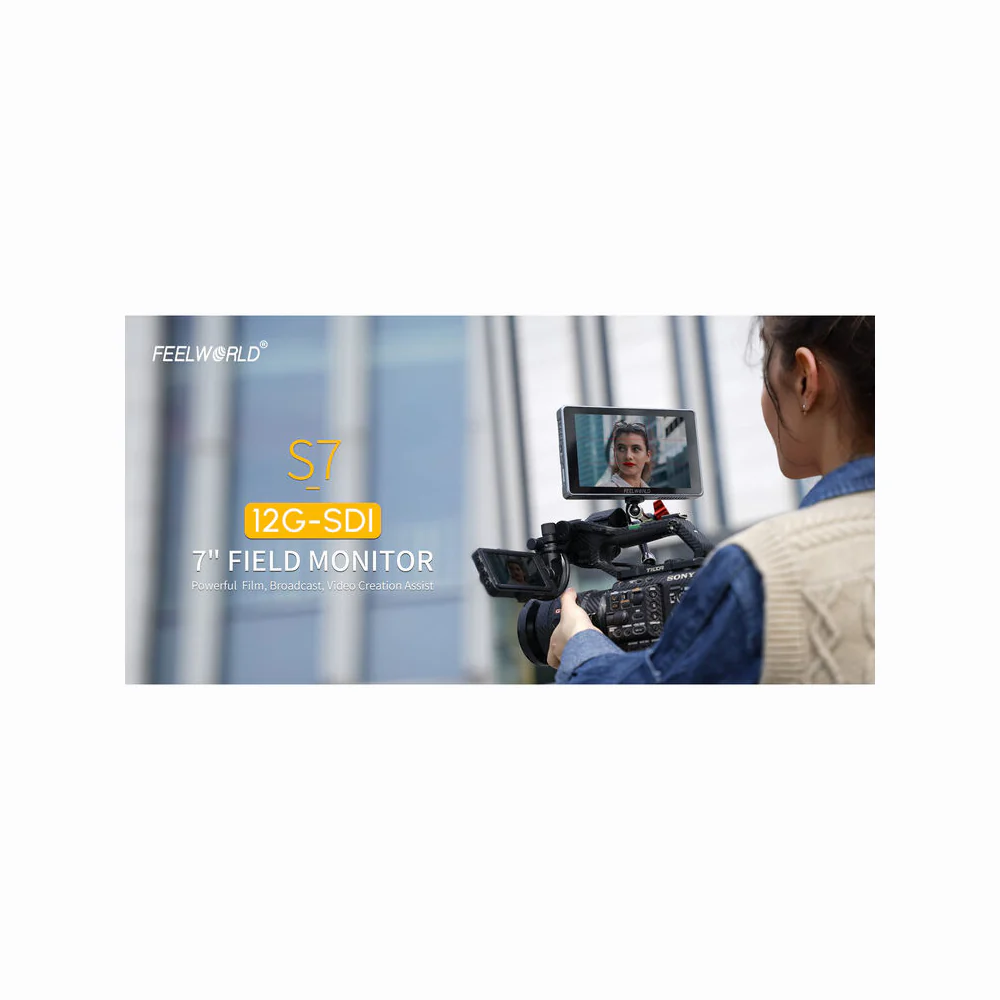

FeelWorld S7 7INCH 12G-SDI/HDMI 2.0 Camera Field Monitor
Key Features
- 7" 1920 x 1200 IPS LCD Monitor
- HDMI 2.0 and 12G-SDI Input/Output
- 1600 cd/m² Brightness, Touchscreen
- Up to DCI 4K I/O, 10-Bit, HDR Support
- Dual L-Series/NP-F Battery Plate
- 1200:1 Contrast Ratio, 3D LUT Support
- 160° Viewing Angle
- HDMI/SDI Cross Conversion Support
Monitor your 4K HDR signals with clarity in the field with the S7 7" 12G-SDI/HDMI 2.0 Camera Field Monitor from Feelworld. This compact, 7" touchscreen field monitor with a durable aluminum chassis features 12G-SDI and HDMI 2.0 inputs and outputs so you can view your 4K footage without the need for down-res. The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and 1600 cd/m² brightness for a crisp viewing experience, even in sunlight.
Other features include HDMI/SDI cross conversion to eliminate the need for external converters, a 16-channel audio meter, 10-bit color depth, HDR HLG support, applying 3D LUTs on loop output, a 3-color tally light, cooling fans, and support for 11 languages. Numerous professional imaging tools are built-in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered using a power adapter or the rear dual L-series battery mount.
12G-SDI Monitoring
Reduce the complexity of your 4K workflow with a single 12G-SDI connector rather than four 3G-SDI cables to monitor a 4K video image. There is no need to down-res your image in the monitor. The connector supports up to 12 Gb/s transmission rate, supporting high-resolution video with high frame rates.
4K Input and Output
Equipped with support for video monitoring up to DCI 4K 4096 x 2160p60 and UHD 4K 3840 x 2160p60 signals, compatible with professional camcorders and the latest DSLR cameras on the market. In addition, the S7 also comes with a 3G-SDI output and provides a 3.5mm headphone jack to monitor audio.
7" Full HD Screen
The high-resolution 7" IPS panel features a wide field of view and 1.07 billion colors for a richer image. A 160° wide viewing angle allows support multiple people to monitor the image from all angles.
HDMI and SDI Cross Conversion
The S7 features built-in signal cross conversion, allowing you to convert HDMI to SDI signals or SDI to HDMI signals without the need for additional external converters.
Calibration and Color Gamut
The monitor is calibrated with CALMAN professional calibration software. It covers 94.9% DCI-P3 film-grade color gamut.
High Brightness
The S7 features high 1600 cd/m° brightness, making it visible in sunlight so you can easily view your images indoors or outdoors.
3-Color Tally Light
A tally light on the top of the monitor can display in red, green, or yellow so you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry-standard DB9 connector on the rear.
Rugged Housing
The housing is constructed with durable CNC aluminum, protecting the monitor in all types of rugged production environments.
Custom Shortcut Keys
On top of the S7 are three custom buttons to set shortcut functions in advance, allowing you to quickly call up the required functions during the shooting process.
Touchscreen Control
The touchscreen LCD allows you to use tap and swipe gestures for quick navigation. There is also a scroll wheel for a more tactile experience.
3D LUTs on Loop Output
The HDMI and 3G-SDI ports can output the video or image with 3D LUT effects applied. When you are live streaming, you can connect the S7 output as a live broadcast image to add a cinematic look, or when shooting on-set, you can output the image with LUTs applied to the director or client by connecting an optional wireless device.
HDR Monitoring
When HDR is activated, the display reproduces a dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. It includes support for HLG1, HLG2, and HLG3 HDR types.
Flexible Power Options
You can connect to DC power input to get continuous power or use the standard L-series dual battery plate to install L-series/NP-F series batteries for mobile applications. One NP-F970 battery (6600mAh) will last about 3 hours. The upper right corner of the monitor will display the battery level after the battery is installed. You can run the monitor using one or two batteries, and they are hot-swappable. An optional V-mount battery plate is separately available.
Support for 11 Languages
There are 11 built-in languages, making it easy for international productions that require crew that speak different languages.
Multiple Mounting Points
The monitor is equipped with three standard 1/4"-20 mounting threads in the bottom, right side, and left side for mounting onto the included tilting shoe adapter mount or other rigs, cages, and extension arms.
Built-In Image Tools
- 3D LUT Log to Rec.709, user 3D LUT upload (up to 32)
- Waveform (RGB, YUV, Y)
- HDR
- Vector
- Histogram (RGB, Y)
- Embedded audio
- Focus assist (red/green/blue, three focus colors optional; 1-10 focus level adjustable)
- False colors (Normal, ARRI)
- Overexposure (10IRE~100IRE adjustable)
- Check field (red, green, blue, mono)
- Scan mode (underscan, overscan)
- Anamorphic mode (1.33x, 1.6x, 2.0x, 2.0x mag, user)
- Image flip (H flip, V flip, H_V flip)
- Image freeze
- Center marker
- Safety frames (80/85/90/93/96%, 2.35:1)
- Aspect ratio (auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, full-screen)
- Ratio marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, black, white, gray)
- Grid (2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, 9x9, or custom rows and columns from 2-9)
- Zoom mode (2x, 4x, 9x, 16x, user)
- Pixel-to-pixel
- Color gamut ( DCI-P3, Rec.709)
- Color temperature (5600/6500/9300K, user)
